PLUG&PROBE CELL

made from alumina, up to 1050 °C

The Plug&Probe Cell is designed to provide a tool to perform easy two gass electrical measurements on pellets or thin film samples at elevated temperatures and changing gas environments for electrolysis and fuel cell measurments.

SPECIFICATIONS

Minimal diameter of tube:                             40 mm

Connectors:                                                    6-12x individually shielded electrical feedthroughs with BNC, SMA or SMB plugs

                                                                      1x miniature thermocouple plug

                                                                      4x 6 mm stainless steel tubes for gas supply

Maximum Sample diameter:                      25 mm

Maximum Sample thickness:                      not specified

Maximal temperature:                                1050 °C (High temperature version avaliable too)

Short circuit impedance:                             (set-up resistance with 2 m coaxial BNC cables at room temp)

Two wire configuration:                              ca. 2 Ω

Four wire configuration:                             ca. 5 · 10-2

Temperature Measurement with                thermocouple Type S (optional Type K)

Leak rate is typically:                                     5 · 10-4 mbar · l · s–1



Open circuit impedance measured at room temperature gives ca. 1 · 1013 and ca. 1 · 10-12 F for the resistive and the capacitive part respectively. The inductive part in the impedance spectra, if visible, generally depends on the connected measurement BNC cables between the impedance analyzer and the Plug&Probe.

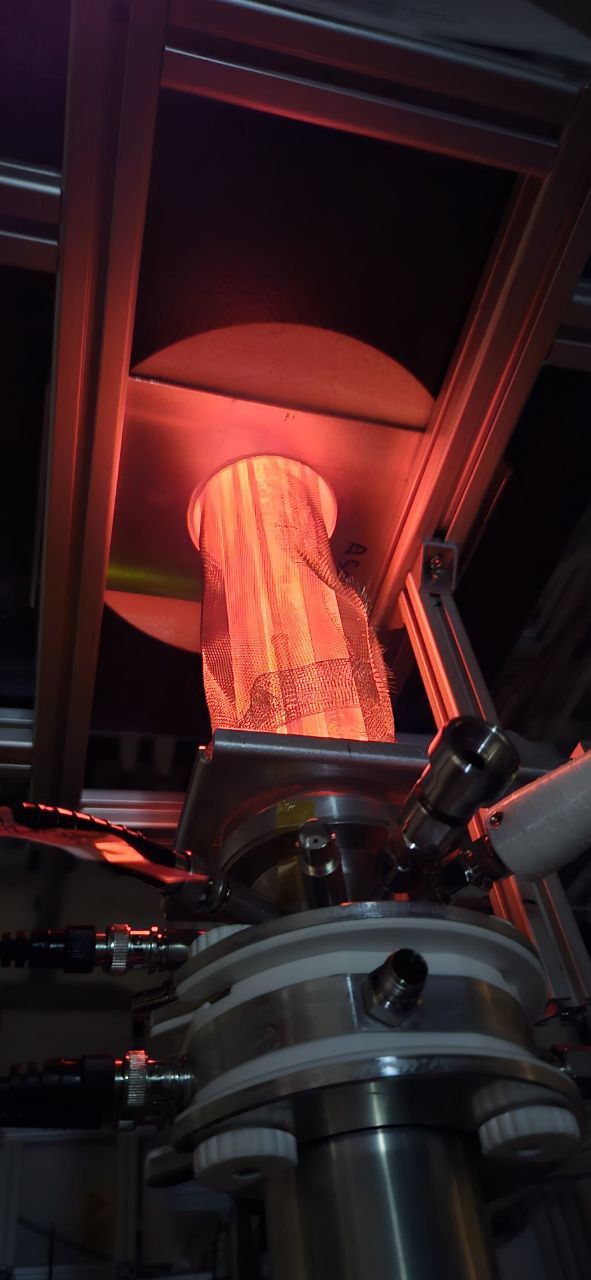

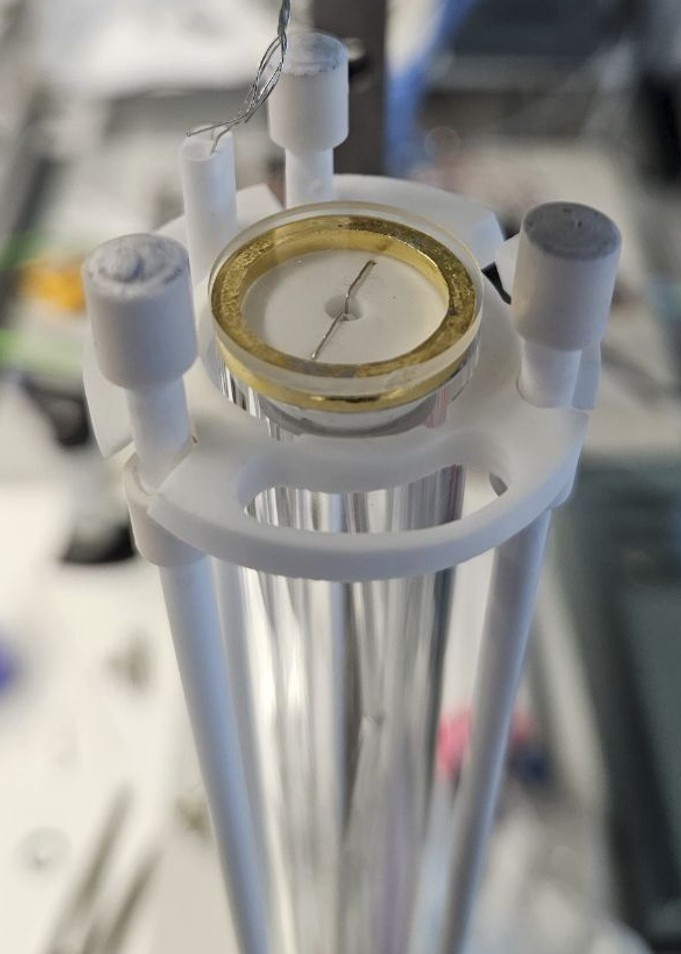

The Plug&Probe Cell consists of metal flanges and a removable quartz glass or alumina tube with alumina test interface using platinum wiring. All parts are spring mounted to prevent breaking and ensures a stable electrical contact between the electrodes and the specimen. The heated part of the Plug&Probe Cell only consist of quartz glass (can be exanged by alumina), alumina and platinum to ensure no outgassing and to prevent any reactions between specimen and sample holder. In case you cannot use platinum in your experiment, you may want to change to another test station with different contact materials. In case you want to contact other sample geometries or specimens with more electrodes or you need information regarding other sample holders please contact your local sales person or Huber Scientific.
